Electric Slip Rings

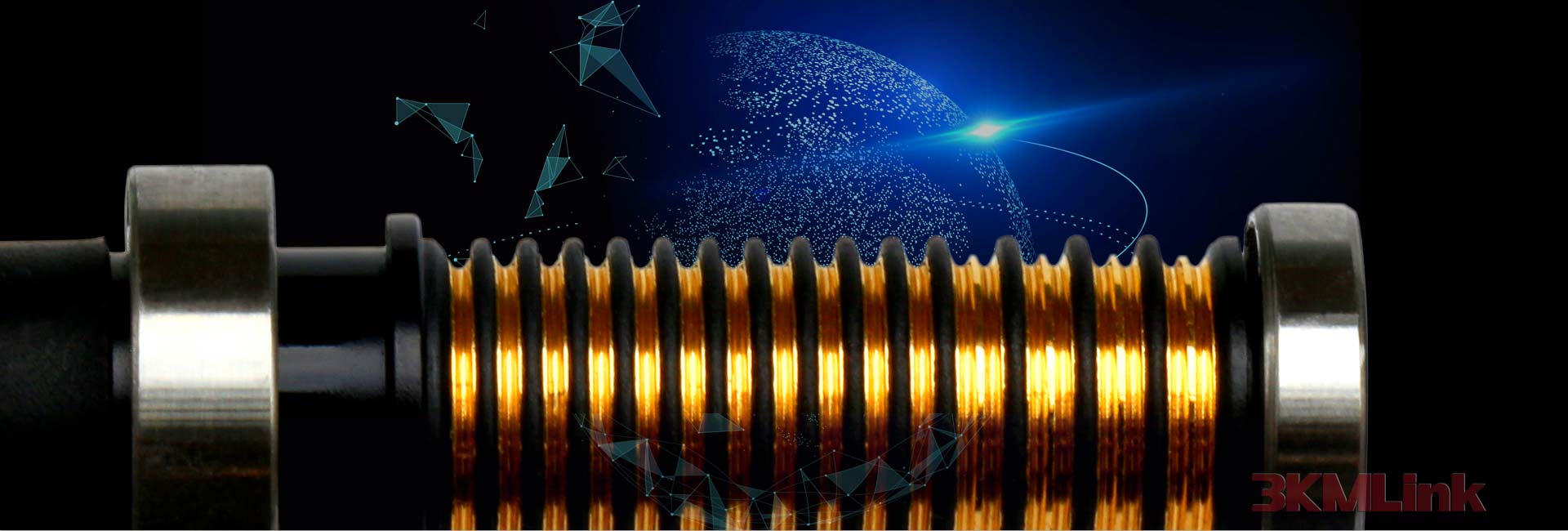

Electrical slip ring is a rotating assembly that could transfer power, control circuits or data (analog / digital) during 360° rotating, including capsule slip ring, miniature slip ring, through bore slip ring, high power slip ring and pancake slip ring, etc. Electrical slip ring can be combined with other medium for transmission, such as Gas+Electrical slip ring, Fluid+Electrical slip ring, RF+Electrical slip ring, Fiber optic+Electrical slip ring, etc.
3KM-C440F1 Series
3KM-M155F1 Series
3KM-MS124F1 Series
3KM-C205F1 Series
Fiber-Electric Slip Rings
Fiber-Electric slip ring is a combined Fiber Optic Rotary Joint and electrical solution, suitable for some applications which require to high-speed signal, mass data, high accuracy, and long-distance transmission from stationary inlets to rotating outlets.

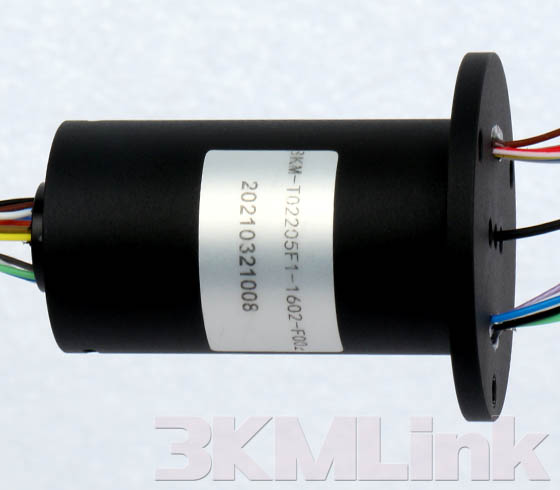

3KM-T02210 Series
3KM-T02210F1-2202-F001
3KM-T02210F1-2002-F001
3KM-T02210F1-1802-F001
3KM-T02210F1-1602-F002
3KM-T02210F1-1602-F001

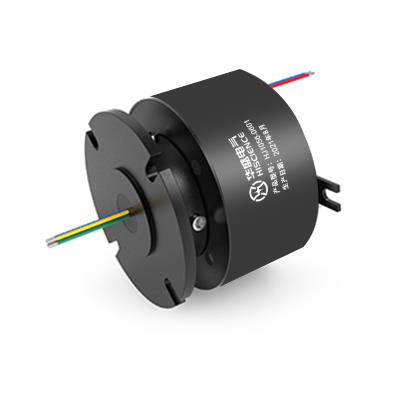

Capsule Slip Rings
Capsule slip rings are designed with flange, 3KM C-series have undergone subversive innovations in terms of structural design, production process, assembly process, performance testing, etc. The key node processes have all realized automated production, eliminating the artificial destruction of consistency during production and installation.
HST05-P03-S02
HS255-P5602 Series
HC25603(HS00230001) Series

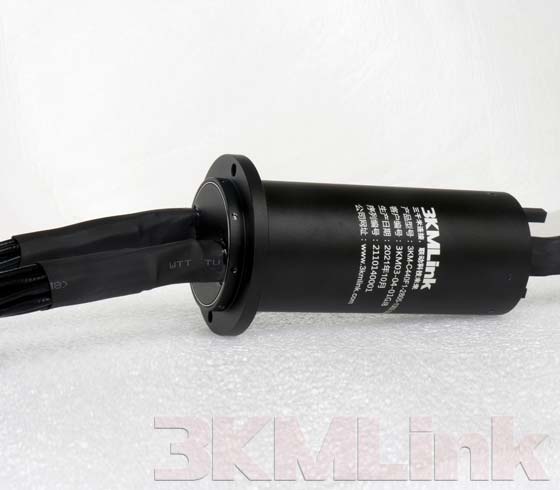

3KM-C440F1 Series

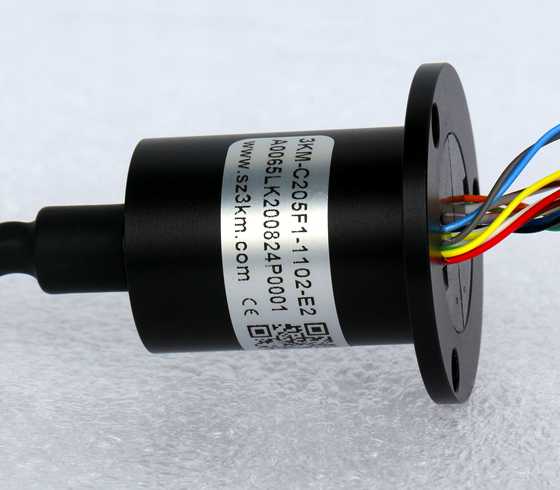

3KM-C205F1 Series
3KM-MS124F1 Series
3KM-M155F1 Series

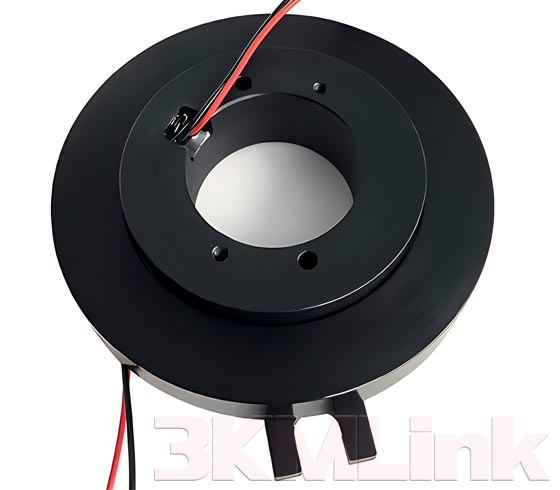

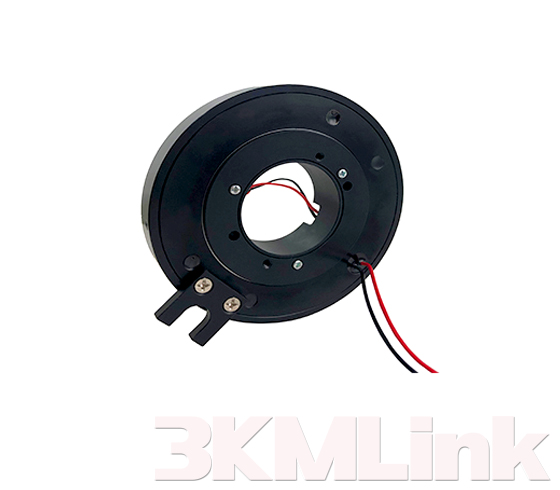

Through Bore Slip Ring
3KM T-series slip ring is designed with a through hole for shaft mounting, the through hole sizes are from 12.7mm to 124.6mm. it could be applied to transmit power, signals, RF, gas and fluid when the devices require 360° rotating.
T-series incorporates cluster brush structure, multi-point uniform contact structure design for each signal, to prevent the phenomenon of packet loss in high-speed rotation of the transmission signal.
Super hard precious metal surface treatment technology, strength, hardness and conductivity are superior to the international military standards hardness.
3KM-T000-0810-14S
3KM-T020-0410-0605-82S-E3
3KM-T0000-0415-0805-HF01
3KM-T019-0410-17S-E3
3KM-T000-1030-1216-0605-122S-25G-01A
HST17-P03-S12-G02-J01

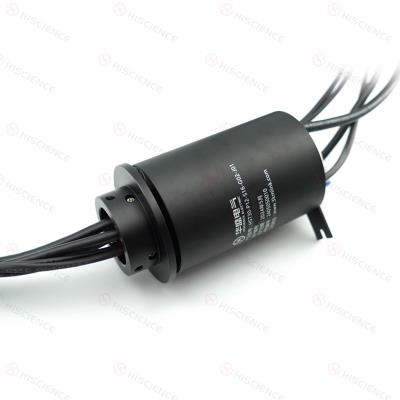

HST30-P12-S16-G02-J01
HST2578-P0120

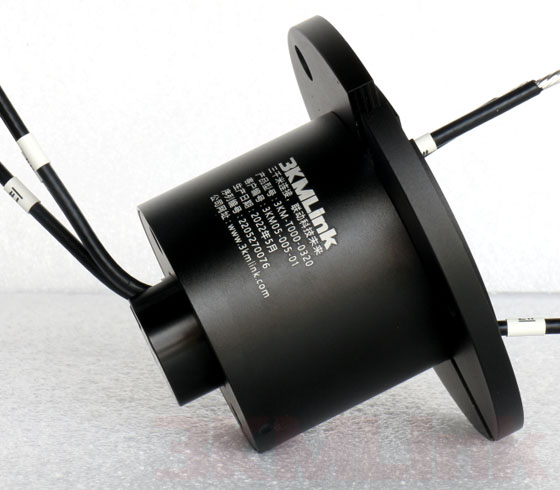

3KM-T000-0320
光纖滑環(huán)

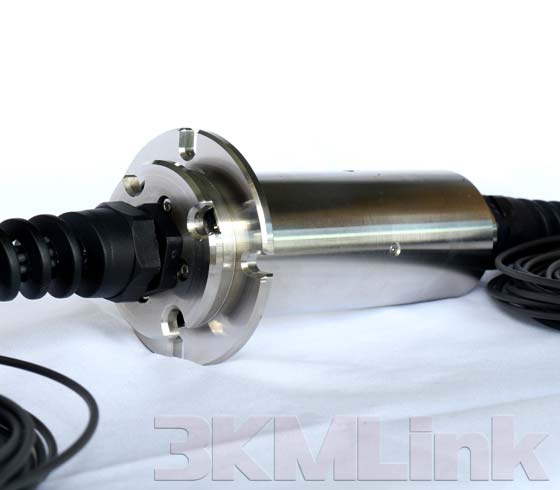

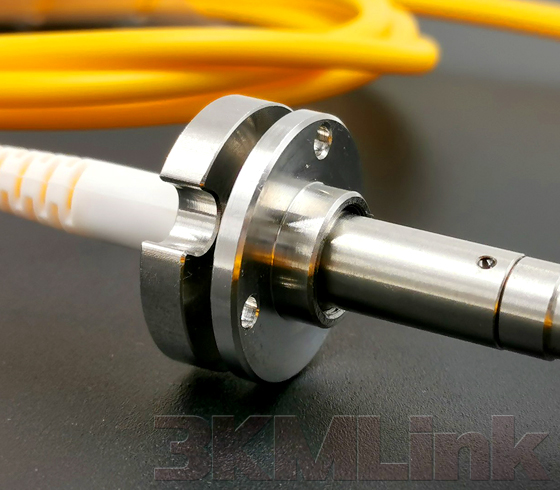

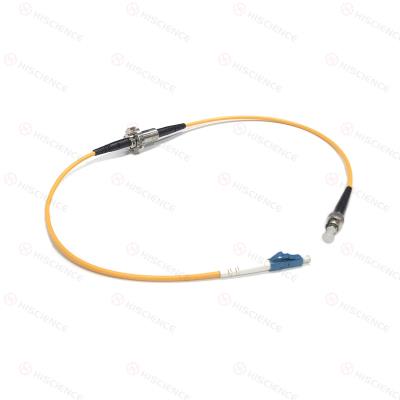

Fiber Optic Slip Ring is a rotating assembly that could transfer electricity and Fiber signal during 360° rotating,The fiber optic slip ring is fully sealed, and the optical signal adopts non-contact and independent propagation, which will not cause interference to electrical signals, nor is it immune to electromagnetic interference, and is highly adaptable to the application environment, such as low temperature, high pressure and electromagnetic interference, with a long-life span.
3KM-FRMMS-X
3KM-F001 Series
3KM-F001A Series
3KM-F001B Series
3KM-F003C Series

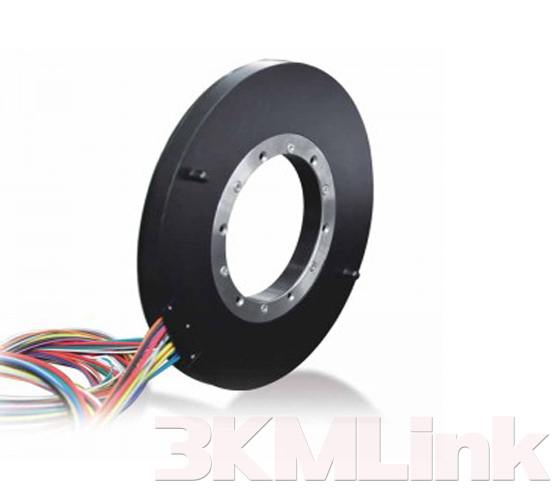

Pancake Slip Rings
The pancake slip ring is a slip ring in which the brush wires and ring channels are designed in a flat concentric circular shape. Its multi-channel brush wires and ring channels are radially distributed from the inside to the outside on the same plane. The height can be as small as 5mm, pancake slip ring is designed for somewhere vertical space is limited while horizontal space is less restrictive.
HP50101-P02-S05-D
3KM-P050-1205/10 Series
3KM-P050-1805/10 Series
3KM-P025-0605/10 Series
3KM-P020-1005/10 Series
3KM-PS005-1005/10 Series
